1661 CHINGFONG C FRAME SINGLE CRANK PRESS

Price 1500000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

1661 CHINGFONG C FRAME SINGLE CRANK PRESS Specification

Usage
Industrial

Material
MS

Power
10-110 Ton

Size
Standard

Voltage
380V / 415V 3 Phase

Dimension (L*W*H)
Standard / As per model

Product Type
C FRAME SINGLE CRANK POWER PRESS

Application
Industrial Sheet Metal Forming

Accessories
Electrical Control Panel, Foot Switch, Safety Guards, Stroke Counter

Warranty
No

Shut Height Adjustment
Mechanical, via Hand Wheel

Stroke Length
Varies by tonnage/model

Frame Type
C Frame, Rigid Welded Structure

Safety Features
Overload Protection, Safety Guard

Drive Type
Mechanical

Operation
Electric

Table Size
Varies by model

Crank Mechanism
Single Crank

1661 CHINGFONG C FRAME SINGLE CRANK PRESS Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Delivery Time
10-15 Days

Main Domestic Market
All India

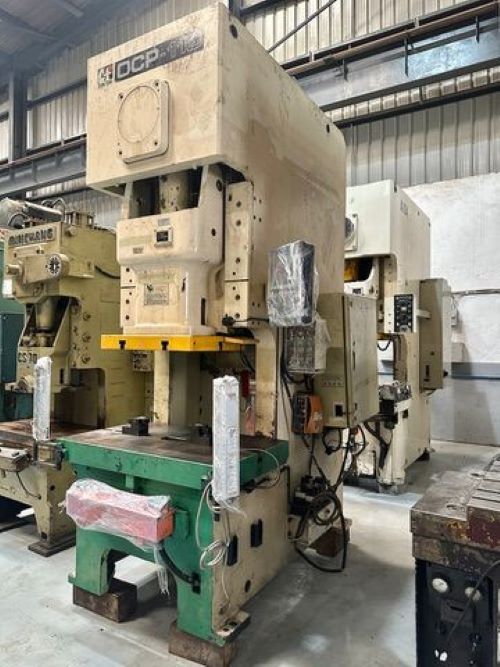

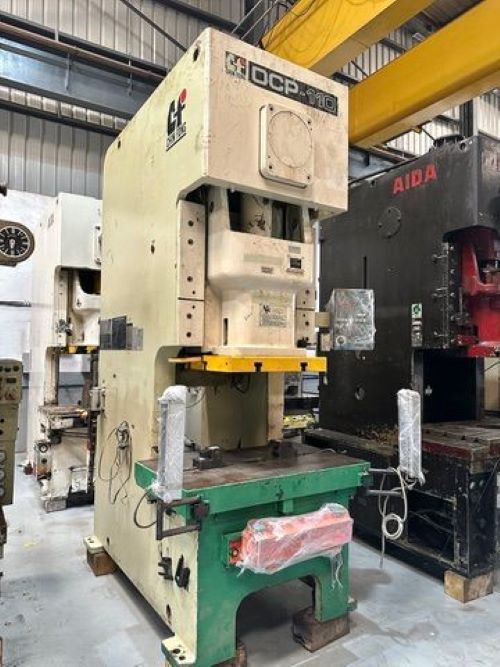

About 1661 CHINGFONG C FRAME SINGLE CRANK PRESS

C FRAME SINGLE CRANK PRESS

CHINGFONG TAIWAN
MODEL : OCP-110

SKU # 1661

Brief Specifications/ Details

Cap : 110Tons
Stroke : 180mm
Die Height : 350mm
Adjustment : 90mm
SPM : 50
Slide : 650 x 520mm
Bolster : 1150 x 680mm

Rigid and Reliable Construction

The CHINGFONG C Frame Single Crank Press boasts a robust, rigid welded structure for durability and consistent performance in demanding industrial environments. Its C Frame design allows for easy die maintenance and flexible access during metal forming operations. Combined with the sturdy MS material, this ensures reliable long-term usage with minimal vibration, maximizing operational precision.

Versatile Operation for Sheet Metal Forming

Designed for a broad spectrum of industrial applications, this press supports a variety of sheet metal forming processes. Its wide range of available tonnages and stroke lengths can accommodate different project needs, while the adjustable shut height makes it suitable for diverse material thicknesses. The mechanical, hand wheel-controlled adjustment ensures quick setup for varying jobs.

Emphasis on Operator Safety and Efficient Controls

Safety features, such as overload protection and comprehensive safety guards, provide peace of mind during operation. The machines included electrical control panel and foot switch streamline workflow, allowing for both precision control and operator protection. These safety and operational enhancements contribute to both productivity and workplace security.

FAQs of 1661 CHINGFONG C FRAME SINGLE CRANK PRESS:

Q: How do I adjust the shut height on the 1661 CHINGFONG C Frame Single Crank Press?

A: The shut height can be mechanically adjusted using the hand wheel. This allows operators to quickly change the vertical distance between the ram and the table to accommodate different die heights or material thicknesses, improving flexibility in sheet metal forming processes.

Q: What safety features are included with this press, and how do they protect the user?

A: The press is equipped with overload protection to prevent mechanical failure under excessive force. Comprehensive safety guards are provided to shield the operator from moving parts. These combined features significantly reduce the risk of accidents during operation.

Q: When is the CHINGFONG C Frame Single Crank Press most commonly used in industry?

A: This press is widely used during industrial sheet metal forming tasks, including stamping, punching, and forming operations. Its reliability and robust design make it ideal for routine manufacturing and fabrication processes in metalworking factories.

Q: Where is the 1661 CHINGFONG C Frame Single Crank Press manufactured and imported from?

A: This model is both produced and imported from Taiwan, ensuring high-quality manufacturing standards and reliable performance for industrial users worldwide.

Q: What accessories come standard with the CHINGFONG C Frame Single Crank Press?

A: Standard accessories include an electrical control panel for operation, a foot switch for hands-free actuation, safety guards, and a stroke counter to monitor press cycles. These accessories streamline setup and contribute to efficient, safe usage.

Q: How does the single crank mechanism benefit the forming process?

A: The single crank mechanism ensures smooth and uniform movement of the ram, resulting in consistent force delivery during forming. This enhances precision in operations, minimizes material deformation, and contributes to higher quality finished parts.
