1681 WASINO C FRAME SINGLE CRANK PRESS

Price 775000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

1681 WASINO C FRAME SINGLE CRANK PRESS Specification

Material
Mild Steel

Power
45 Ton

Voltage
415 V

Dimension (L*W*H)
1600 x 1100 x 2650 mm

Product Type
C FRAME SINGLE CRANK POWER PRESS

Application
Sheet metal forming, Punching, Blanking, Stamping

Accessories
Standard die set, Manual/Foot pedal control, Oil lubricating system

Bolster Thickness
120 mm

Frame Type
C Frame

Motor Power
7.5 kW

Slide Adjustment
80 mm

Stroke Per Minute
40 - 80 SPM

Shut Height
300 mm

Press Accuracy
High precision, suitable for fine stamping operations

Model
1681 WASINO

Ram Size
500 x 400 mm

Bed Size
950 x 650 mm

Stroke Length
120 mm

1681 WASINO C FRAME SINGLE CRANK PRESS Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Main Domestic Market
All India

1681 WASINO C FRAME SINGLE CRANK PRESS About

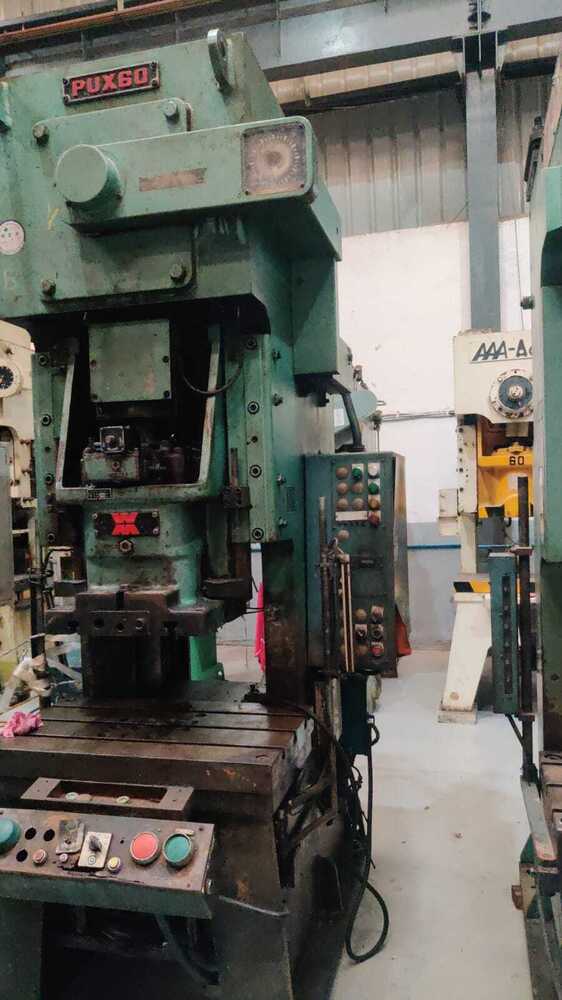

C FRAME SINGLE CRANK PRESS

WASINO JAPAN
MODEL : PUX-60

SKU # 1681

Brief Specifications/ Details

Cap : 60Tons
Stroke : 160mm
Die Height : 335mm
Adjustment : 70mm
SPM : 55
Slide : 500 x 400mm
Bolster : 900 x 550mm

High Precision for Demanding Applications

The 1681 WASINO C Frame Single Crank Press is designed for tasks that require exceptional accuracy, such as fine stamping and precision sheet metal work. The combination of a sturdy C frame and high-quality components ensures consistent, repeatable results in manufacturing environments that demand excellence.

Robust Construction and Versatile Operations

Constructed from mild steel, this press boasts longevity and resilience under heavy-duty use. The bed size of 950 x 650 mm and ram size of 500 x 400 mm accommodate various dies, making it suitable for punching, blanking, and other metal forming applications, enhancing operational flexibility.

Optimized for User Safety and Convenience

Equipped with manual or foot pedal controls and a reliable oil lubricating system, the 1681 WASINO Press prioritizes both operator safety and ease of use. Its well-planned shut height and slide adjustment offer easy setup and rapid changeovers, maximizing productivity for workshops and factories.

FAQs of 1681 WASINO C FRAME SINGLE CRANK PRESS:

Q: How can I operate the 1681 WASINO C Frame Single Crank Press safely?

A: The press can be operated using the standard manual or foot pedal controls, ensuring both hands are free for material handling. Always follow manufacturer safety guidelines, and utilize the integrated oil lubricating system and proper die setup to minimize risks.

Q: What materials and applications is this press suitable for?

A: Primarily designed for processing mild steel, the 1681 WASINO is ideal for sheet metal forming, punching, blanking, and stamping. Its high precision makes it especially suitable for fine stamping operations in industrial manufacturing.

Q: When should I adjust the slide or ram settings?

A: Adjust the slide, which has an 80 mm range, and the ram (500 x 400 mm) according to your workpiece thickness and die requirements. Proper adjustment ensures accuracy and prolongs the equipments lifespan.

Q: Where is the 1681 WASINO C Frame Single Crank Press manufactured?

A: This press is manufactured in Japan, ensuring high build quality and precision engineering in compliance with international manufacturing standards.

Q: What is the process for setting up different dies on this press?

A: Begin by ensuring the power is off. Secure the standard die set onto the bolster (120 mm thick) using appropriate fasteners. Adjust the shut height and slide position for your specific tool, then test the setup with the manual control before running in automatic mode.

Q: What are the benefits of the C frame design in this press?

A: The C frame offers excellent accessibility for die changes and material handling, while maintaining structural integrity under heavy loads. This design helps achieve high precision in stamping operations and facilitates maintenance.
