1682 WASINO C FRAME SINGLE CRANK PRESS

Price 625000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

1682 WASINO C FRAME SINGLE CRANK PRESS Specification

Material
High Grade Steel

Power
110 Ton

Voltage
380V

Product Type
C FRAME SINGLE CRANK POWER PRESS

Dimension (L*W*H)
2320 mm x 1120 mm x 2750 mm

Application
Sheet Metal Forming, Punching, Blanking, Bending

Accessories
Die Cushion, Light Curtain, Foot Switch, Control Panel

Bolster Thickness
180 mm

Frame Type
C-Frame

Model
Wasino 1682

Shut Height
450 mm

Ram Adjustment
100 mm

Type
Single Crank Press

Strokes per minute
40 spm

Slide Area
1000 mm x 700 mm

Bed Area
1600 mm x 800 mm

Operation Mode
Semi-Automatic

Stroke Length
250 mm

1682 WASINO C FRAME SINGLE CRANK PRESS Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Main Domestic Market
All India

About 1682 WASINO C FRAME SINGLE CRANK PRESS

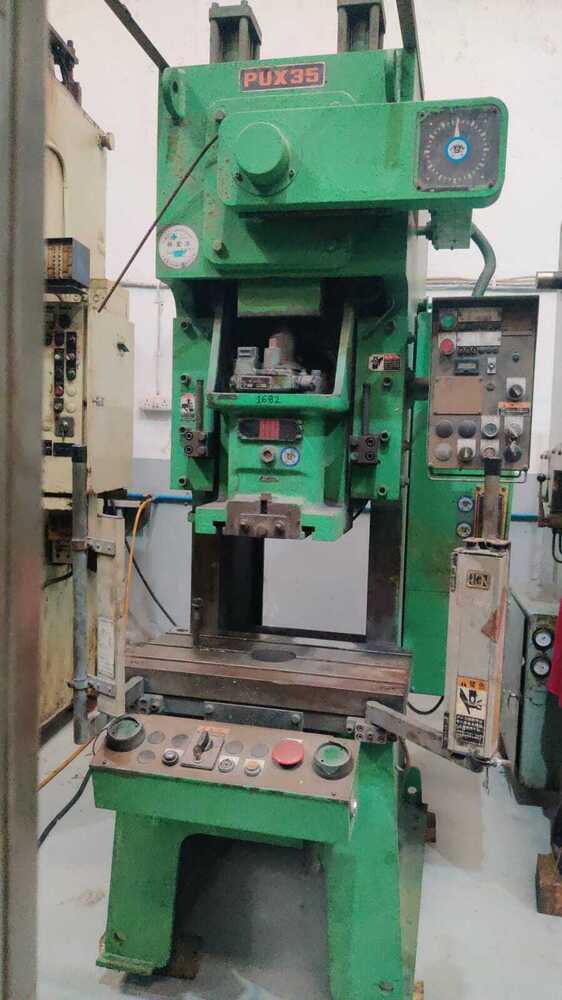

C FRAME SINGLE CRANK PRESS

WASINO JAPAN
MODEL : PUX-35

SKU # 1682

Brief Specifications/ Details

Cap : 35Tons
Stroke : 110mm
Die Height : 250mm
Adjustment : 55mm
SPM : 100
Slide : 350 x 300mm
Bolster : 700 x 400mm

Efficient and Versatile Metal Forming Solution

Tailored for sheet metal applications, the Wasino 1682 C Frame Single Crank Press combines reliability and productivity in one machine. With a powerful 110-ton capacity, this press manages various processes, including punching, blanking, and bending, with accuracy and consistency. Its semi-automatic controls and user-friendly interface minimize downtime, making it an excellent choice for workshop floors demanding both flexibility and efficiency.

Precision Engineering for Industrial Needs

Engineered in Japan using high-grade steel, the Wasino 1682 ensures durability and long service life. Its substantial bed and slide areas allow for handling a range of workpiece sizes, while features like the die cushion and light curtain elevate operational safety and precision. Adjustment options for ram and slide area further enhance the presss usability in a spectrum of metalworking projects.

FAQs of 1682 WASINO C FRAME SINGLE CRANK PRESS:

Q: How is the Wasino 1682 C Frame Single Crank Press typically operated?

A: The press operates in a semi-automatic mode and can be controlled via the included control panel and foot switch. This setup enhances operator safety and efficiency, making it easy to perform precise metal forming tasks.

Q: What materials and processes is this press suitable for?

A: Constructed from high-grade steel, the Wasino 1682 is designed for sheet metal forming processes such as punching, blanking, and bending. Its 110-ton force capacity accommodates a variety of metals and complex forming requirements.

Q: When should I use the adjustable features of the press?

A: Use the 100 mm ram adjustment and spacious slide area wherever you need to accommodate different die heights or part sizes, ensuring accurate alignment and optimal forming results for various production needs.

Q: Where can the Wasino 1682 be installed and put to use?

A: Due to its robust construction and moderate dimensions (2320 mm x 1120 mm x 2750 mm), this press is suitable for installation in industrial manufacturing facilities, metalworking plants, and workshops focused on precision parts production.

Q: What is the typical workflow or process when using this machine?

A: The workflow includes positioning the sheet metal on the bed, adjusting the ram as needed, and operating the machine with the foot switch or control panel. Accessories like the die cushion and light curtain ensure proper safety and product quality throughout the process.

Q: What are the main benefits of choosing the Wasino 1682 press?

A: Users benefit from its strong 110-ton pressing power, reliable build quality, and a wide work area, which collectively enable high productivity and consistent output for multiple metal forming applications.
