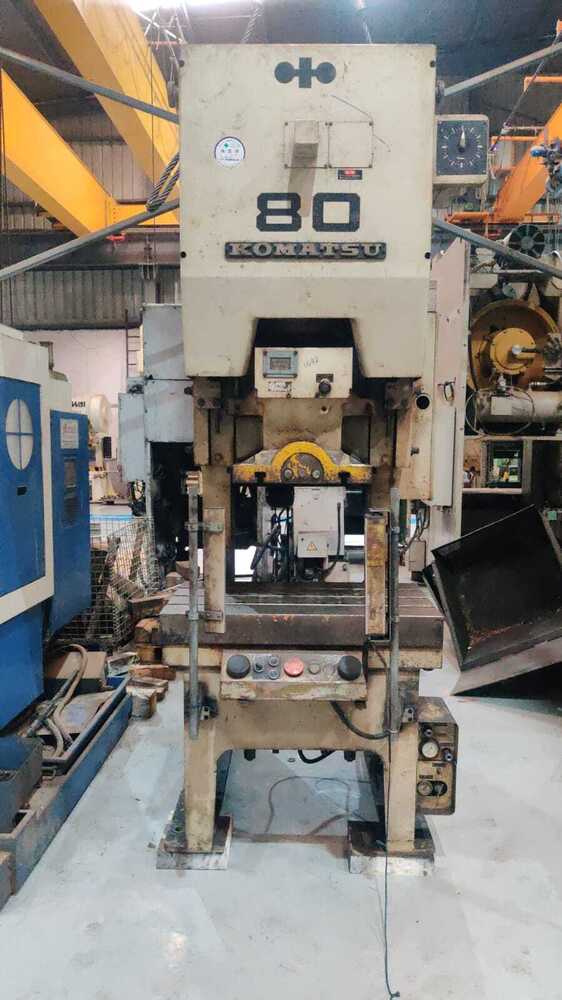

1692 KOMATSU C FRAME SINGLE CRANK PRESS

Price 1075000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

1692 KOMATSU C FRAME SINGLE CRANK PRESS Specification

Material
High Grade Cast Iron

Power
45 Ton

Voltage
415 V

Dimension (L*W*H)
1700 x 1100 x 2300 mm

Product Type
C FRAME SINGLE CRANK POWER PRESS

Application
Sheet Metal Forming, Punching and Stamping Operations

Accessories
Electrical Panel, Foot Switch, Oil Lubrication System

1692 KOMATSU C FRAME SINGLE CRANK PRESS Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Main Domestic Market
All India

About 1692 KOMATSU C FRAME SINGLE CRANK PRESS

SKU # 1692

Brief Specifications/ Details

Cap : 80Tons
Stroke : 130mm
Die Height : 350mm
Adjustment : 80mm
SPM : 3575
Slide : 500x 400mm
Bolster : 1000x 600mm

Accessories

With Die Cushion

Precision and Versatility for Metalworking

Designed with industrial efficiency in mind, the 1692 KOMATSU C FRAME PRESS supports precise sheet metal forming, punching, and stamping. Its adjustable slide and deep throat enable versatile operations, while the oil lubrication system minimizes wear and ensures smooth action. The machines robust frame and reliable components make it suitable for demanding production environments.

Advanced Engineering and Reliable Performance

Constructed from premium cast iron, this press offers exceptional durability and minimal vibration during operation. With a bed size of 850 x 550 mm and a 110 mm stroke length, it accommodates various die sizes and workpieces. Motorized for semi-automatic use, the press combines ease of operation with consistent power output, making it a valuable asset for manufacturers and importers alike.

FAQs of 1692 KOMATSU C FRAME SINGLE CRANK PRESS:

Q: How is the 1692 KOMATSU C FRAME SINGLE CRANK PRESS typically used?

A: This press is commonly employed for sheet metal forming, punching, and stamping operations in manufacturing plants. Its semi-automatic design and adjustable features allow it to process a range of metal components efficiently.

Q: What materials and applications is this machine suitable for?

A: The press is constructed from high-grade cast iron and is intended for processing various sheet metals. It is ideal for tasks requiring accurate punching and shaping, such as automotive components, industrial hardware, and general fabrication.

Q: When would I need to adjust the slide or stroke length on this press?

A: Adjusting the slide or stroke length is necessary when handling workpieces of varying thickness or when using different dies, ensuring precise operation and optimal forming depth according to production requirements.

Q: Where is this press manufactured and who is it suitable for?

A: The 1692 KOMATSU press is manufactured in Japan. It is suitable for manufacturers, sheet metal fabricators, and importers seeking durable, high-performance metal forming solutions.

Q: What is the process of operating this machine?

A: Operation involves setting up the die, adjusting required parameters such as slide and stroke, and utilizing the foot switch and electrical panel for semi-automatic control. The oil lubrication system ensures smooth, low-maintenance cycling.

Q: How does the included oil lubrication system benefit the user?

A: The integrated oil lubrication system reduces mechanical wear, improves operational lifespan, and helps maintain consistent press performance with minimal manual intervention.
