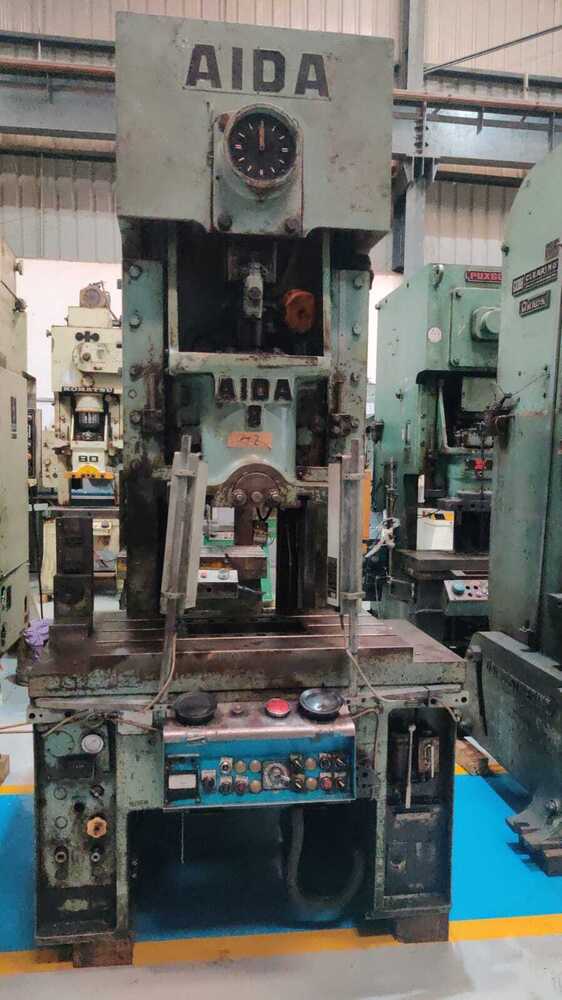

1678 AIDA C FRAME SINGLE CRANK PRESS

Price 1100000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

1678 AIDA C FRAME SINGLE CRANK PRESS Specification

Material
Mild Steel

Power
45 Ton

Voltage
415 V

Dimension (L*W*H)
1800mm x 1100mm x 2450mm

Product Type
C FRAME SINGLE CRANK POWER PRESS

Application
Sheet Metal Forming, Stamping, Punching, and Cutting

Accessories
Standard Accessories Included

Main Motor
5.5 kW

Slide Adjustment
60 mm

Control System
Electrical

Frame Design
C Frame

Type
Single Crank

Shut Height
270 mm

Ram Stroke
120 mm

Bed Size
900 mm x 500 mm

Strokes Per Minute
50 SPM

1678 AIDA C FRAME SINGLE CRANK PRESS Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Main Domestic Market
All India

About 1678 AIDA C FRAME SINGLE CRANK PRESS

C FRAME SINGLE CRANK PRESS

AIDA JAPAN
MODEL : C1-80(2)

SKU # 1678

Brief Specifications/ Details

Cap : 80Tons
Stroke : 160mm
Die Height : 320mm
Adjustment : 80mm
SPM : 4055
Slide : 540 x 460mm
Bolster : 980 x 600mm

Efficient Sheet Metal Processing

Equipped with a 45-ton power and a 5.5 kW main motor, the AIDA C Frame Single Crank Press excels in sheet metal forming operations. Its strong C frame design ensures stability during stamping, punching, and cutting tasks, making it ideal for medium to high-volume production environments.

Precision and Versatility

With a ram stroke of 120 mm, shut height of 270 mm, and adjustable slide, this press accommodates a range of die sets and thicknesses. Its generous bed size (900 mm x 500 mm) and rapid 50 strokes per minute allow for flexible, accurate manufacturing across diverse materials.

Reliable Performance and Safety

The press features a robust mild steel build and an electrical control system for consistent operations. Standard accessories are included to provide seamless set-up and maintenance, while Japanese manufacturing ensures reliability and longevity in demanding industrial use.

FAQs of 1678 AIDA C FRAME SINGLE CRANK PRESS:

Q: How is the 1678 AIDA C Frame Single Crank Press operated?

A: The press is powered by an electrical control system with a main motor of 5.5 kW. Operators manage its functions through an intuitive interface, enabling efficient control over stamping, cutting, and forming processes.

Q: What materials can be processed with this press?

A: The AIDA C Frame Single Crank Press is optimized for mild steel, but it can handle various sheet metals as long as they match the presss power (45 ton) and bed size requirements.

Q: When should the slide adjustment be used?

A: The slide adjustment, with a 60 mm range, is utilized when changing dies or processing materials of varying thickness. It ensures proper alignment and effective operation for different production needs.

Q: Where can the press be installed and effectively used?

A: This machine can be installed in manufacturing facilities, metal workshops, and stamping plants where sheet metal forming, punching, cutting, or stamping are required. Its compact dimensions support easy integration into most industrial layouts.

Q: What process benefits does the C frame design offer?

A: The C frame design provides superior accessibility for die changes, material handling, and safety. It also maintains excellent rigidity and stability during high-force operations, reducing vibration for accurate results.

Q: How does the press enhance productivity?

A: With a stroke rate of 50 SPM and quick slide adjustments, this press speeds up production and minimizes downtime in manufacturing operations, supporting consistent and high-volume output.
