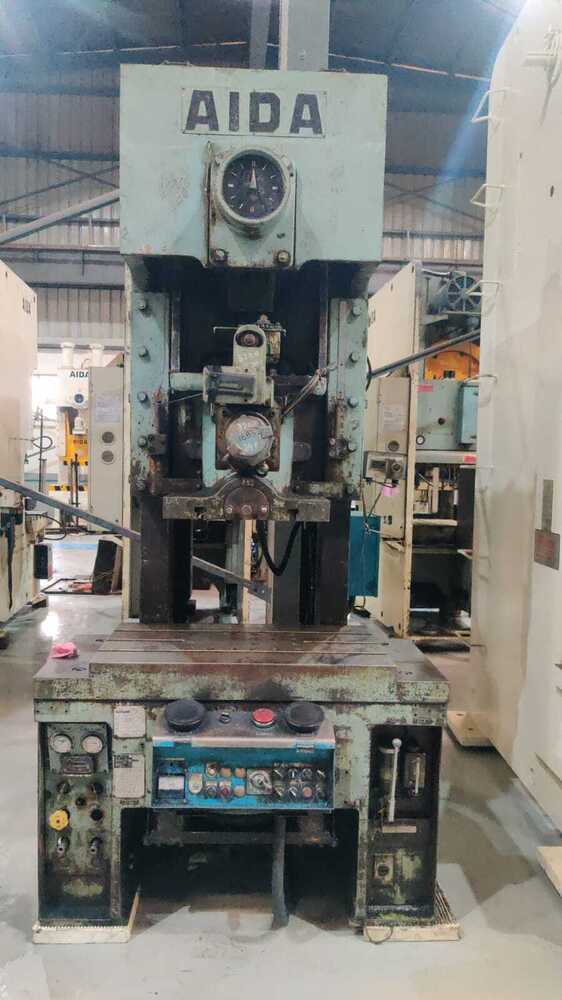

1683 AIDA C FRAME SINGLE CRANK PRESS

Price 975000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

1683 AIDA C FRAME SINGLE CRANK PRESS Specification

Material
High Grade Steel

Power
110 Ton

Voltage
415 V / 50 Hz

Product Type
C FRAME SINGLE CRANK POWER PRESS

Dimension (L*W*H)
1700 mm x 1050 mm x 2700 mm

Application
Precision Metal Stamping and Forming

Accessories
Standard Tool Set, Lubrication System, Electrical Panel

Shut Height
400 mm

Bed Size
950 mm x 620 mm

Control System
PLC Based

Ram Adjustment
Motorized

Speed
40 - 60 SPM

Bolster Thickness
120 mm

Stroke Length
180 mm

Motor Capacity
11 kW

Crank Type
Single Crank

Frame Type
C Frame

Slide Area
600 mm x 450 mm

Slide Adjustment
90 mm

Throat Depth
300 mm

1683 AIDA C FRAME SINGLE CRANK PRESS Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Main Domestic Market
All India

About 1683 AIDA C FRAME SINGLE CRANK PRESS

C FRAME SINGLE CRANK PRESS

AIDA JAPAN
MODEL : C1-8(2)

SKU # 1683

Brief Specifications/ Details

Cap : 80Tons
Stroke : 160mm
Die Height : 320mm
Adjustment : 80mm
SPM : 4075
Slide : 540 x 460mm
Bolster : 980 x 600mm

Accessories :With Die Cushion

Precision Metal Forming for Demanding Applications

Engineered for precision and consistency, the AIDA C Frame Single Crank Press is ideal for a wide range of metal stamping and forming tasks, providing high accuracy and repeatability thanks to its rigid frame and advanced motorized ram adjustment. Its adaptable slide area and ample bolster thickness cater to diverse die setups, supporting both small-scale production and heavy-duty industrial requirements.

Robust Construction and Reliable Performance

Manufactured in Japan from high-grade steel, this press ensures stability and durability even in the most demanding operations. The motorized ram and PLC-based control system enhance usability, while safety features and standard accessories streamline setup and ongoing operations for professionals seeking reliable manufacturing capabilities.

FAQs of 1683 AIDA C FRAME SINGLE CRANK PRESS:

Q: How is the stroke length adjusted on the 1683 AIDA C Frame Single Crank Press?

A: The stroke length of 180 mm is factory-set for optimal performance, while the slide (ram) adjustment is motorized, allowing operators to fine-tune the slide position up to 90 mm for varying die heights and requirements.

Q: What types of applications are best suited for this press?

A: This press is specifically designed for precision metal stamping and forming applications in industries such as automotive, electronics, and appliance manufacturing, where accuracy, speed, and reliability are essential.

Q: When should routine maintenance, such as lubrication and inspection, be performed?

A: Routine maintenance, including lubrication and inspection of moving parts, should be performed according to operation hours and manufacturer recommendations. Typically, lubrication is managed by the built-in system, but periodic checks ensure continuous smooth operation.

Q: Where is the 1683 AIDA C Frame Press manufactured and what material is used for its construction?

A: This press is imported from Japan and constructed using high-grade steel, ensuring robust performance, structural integrity, and extended service life.

Q: What is the process for setting up this press for a production run?

A: Setup involves securing the die onto the 950 mm x 620 mm bed, adjusting the ram position with the motorized slide (up to 90 mm), configuring the bolster and slide area, and programming the PLC-based control system according to the jobs requirements.

Q: How does the PLC-based control system benefit daily operations?

A: The advanced PLC-based control system provides precise control over press functions, enhances operator safety, streamlines parameter setting, and supports efficient troubleshooting, making daily operations smoother and reducing downtime.
