1684 AAA AUTO C FRAME SINGLE CRANK PRESS

Price 1000000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

1684 AAA AUTO C FRAME SINGLE CRANK PRESS Specification

Material
Mild Steel

Power
10 Hp

Voltage
220-380 Volt (v)

Dimension (L*W*H)
1600 x 900 x 2200 mm

Product Type
C FRAME SINGLE CRANK POWER PRESS

Application
Sheet Metal Forming

Accessories
Main Motor, Flywheel, Ram Adjustment, Clutch and Brake, Electric Panel

Automation Grade
Automatic

Crank Type
Single Crank

Ram Adjustment
60 mm

Frame Type
C Frame

Surface Finish
Paint Coated

Operation Mode
Semi-Automatic

Capacity
60-200 Ton

Stroke Length
100-150 mm

Motor Speed
1440 rpm

Table Size
900 x 600 mm

1684 AAA AUTO C FRAME SINGLE CRANK PRESS Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Main Domestic Market
All India

1684 AAA AUTO C FRAME SINGLE CRANK PRESS About

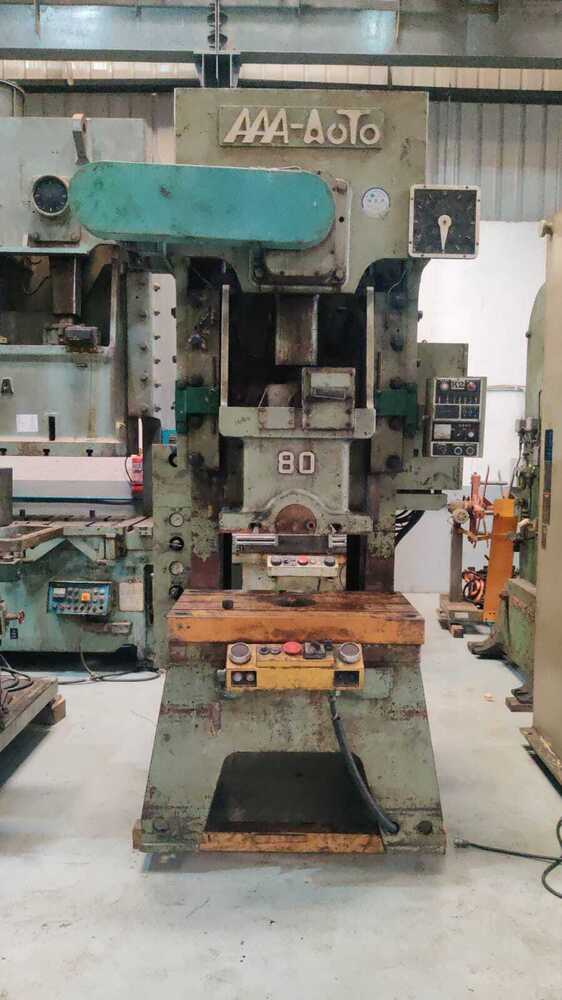

C FRAME SINGLE CRANK PRESS

AAA AUTO JAPAN
MODEL : AC1-8K2

SKU # 1684

Brief Specifications/ Details

Cap : 80Tons
Stroke : 160mm
Die Height : 350mm
Adjustment : 80mm
SPM : 4080
Slide : 580 x 400mm
Bolster : 950 x 550mm

High-Efficiency Sheet Metal Forming

Benefit from superior performance and reliability with the 1684 AAA AUTO C FRAME SINGLE CRANK PRESS. Its automatic grade and precise single crank technology allow consistent results for complex sheet metal operations, ensuring optimized cycle times in production. The robust frame and high-capacity motor guarantee stability across diverse applications, making it suitable for medium to large manufacturing environments.

Adaptable for Various Industrial Needs

With a stroke length of 100-150 mm and a spacious 900 x 600 mm table size, this press easily accommodates different materials and shapes. The paint-coated mild steel construction provides longevity, while adjustable ram settings and a controlled speed motor offer flexibility for specific sheet forming tasks. Enhanced with standard accessories, it streamlines your production process and increases overall efficiency.

FAQs of 1684 AAA AUTO C FRAME SINGLE CRANK PRESS:

Q: How does the C Frame design benefit sheet metal forming operations?

A: The C Frame structure ensures greater accessibility and stability during pressing, making it ideal for sheet metal forming tasks that require frequent loading and unloading. It allows for easy integration of automation and accessories, reducing setup times and enhancing workflow efficiency.

Q: What automation features are included in this press?

A: The 1684 AAA AUTO C FRAME SINGLE CRANK PRESS incorporates an automatic grade of operation, featuring an electric panel and main motor control. This supports semi-automatic processing for increased productivity while maintaining precision and user safety.

Q: When should I use the ram adjustment feature?

A: Adjusting the ram is recommended when you need to accommodate different sheet thicknesses or workpiece heights. The 60 mm ram adjustment range ensures precise alignment and optimal pressure distribution for varied forming processes.

Q: Where is the 1684 AAA AUTO C FRAME SINGLE CRANK PRESS typically installed?

A: This press is best suited for manufacturing facilities, workshops, and sheet metal fabrication plants where high-capacity and reliable pressing machines are required for continuous operation and demanding production schedules.

Q: What is the process for operating the single crank mechanism?

A: The single crank mechanism transforms motor power into smooth, repetitive vertical motion, which drives the ram for precise pressing. Operators use the electric panel to control motion, while the clutch and brake ensure safety and process accuracy during each cycle.

Q: How does the semi-automatic mode enhance user operation?

A: Semi-automatic mode allows operators to maintain control over each pressing cycle while benefiting from automated features, reducing manual workload, and improving consistency and productivity in sheet metal forming.

Q: What are the key benefits of using this press for sheet metal applications?

A: Key benefits include reliable high-tonnage capacity, robust construction for industrial use, versatility in handling different metals and sizes, efficient semi-automatic processing, and advanced safety and control features, delivered in a compact and durable Japanese-engineered package.
