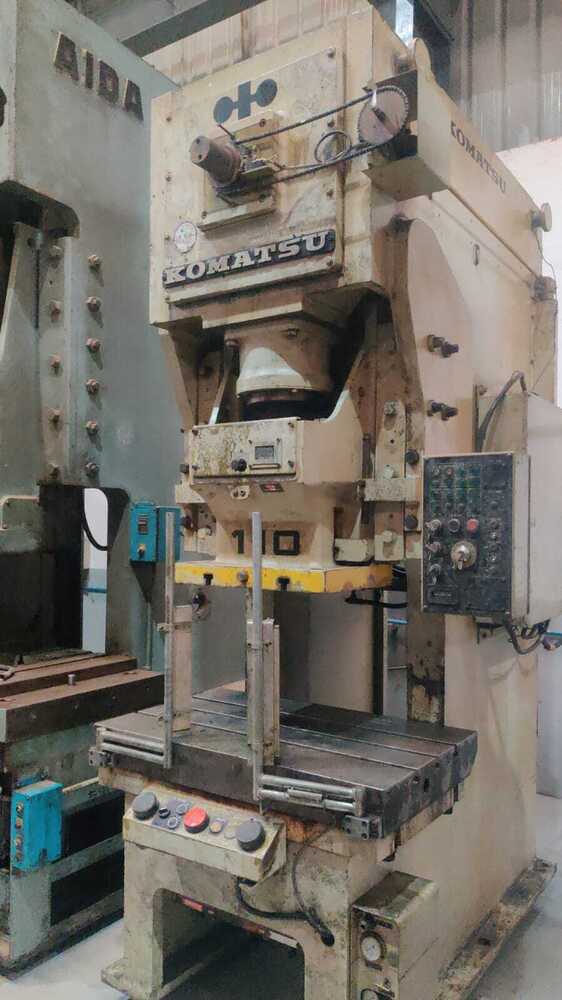

1685 KOMATSU C FRAME SINGLE CRANK PRESS

Price 1450000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

1685 KOMATSU C FRAME SINGLE CRANK PRESS Specification

Material
High-grade Cast Iron & Alloy Steel

Power
20 Ton to 200 Ton

Voltage
220V/380V/415V (as per customer requirement)

Product Type
C FRAME SINGLE CRANK POWER PRESS

Dimension (L*W*H)
Varies by capacity; Standard models available

Application
Punching, Stamping, Forming, Embossing, and Bending sheet metal

Accessories
Die cushion, feeder, automatic lubricator, pneumatic clutch

Safety Features
Mechanical Interlocks, Overload Protection

Control Panel
PLC/Conventional

Ram Adjustment
Manual/Motorized (as per model)

Stroke Length
Adjustable as per model specification

Motor Power
Varies as per press tonnage

Table Size
Depends on press capacity, customizable

Operation
Single Crank Mechanism

Surface Finish
Powder Coated

Production Rate
Up to 60 strokes/min (model dependent)

Frame Type
C-Frame

1685 KOMATSU C FRAME SINGLE CRANK PRESS Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Main Domestic Market
All India

About 1685 KOMATSU C FRAME SINGLE CRANK PRESS

C FRAME SINGLE CRANK PRESS

KOMATSU JAPAN
MODEL : OBS 110-2

SKU # 1685

Brief Specifications/ Details

Cap : 110Tons
Stroke : 150mm
Die Height : 380mm
Adjustment : 100mm
SPM : 50
Slide : 600 x 450mm
Bolster : 1100 x 700mm

Accessories

With Die Cushion

Precision Engineering for Reliable Performance

Built with an optimized single crank mechanism, the KOMATSU C Frame Press delivers efficient force distribution and enhanced accuracy in metal forming. Its rigid C-frame design ensures stability during high-speed operations, reducing vibration and extending machine life. The flexible ram adjustment and customizable table make it suitable for a wide range of sheet metal applications.

Adaptability to Diverse Production Needs

With adjustable stroke length and a selection of table sizes, this press accommodates various die setups and material specifications. Customers can select voltage options and press tonnage to match their factory requirements, further supported by standard and motorized ram adjustment models for simplified setup and operation.

Advanced Safety and Automation Integration

Incorporating mechanical interlocks and overload protection as standard, the press prioritizes operator safety. Options for PLC controls allow for automated cycle programming and integration with feeding, die cushioning, and lubrication accessories, boosting production efficiency and reliability in demanding industrial environments.

FAQs of 1685 KOMATSU C FRAME SINGLE CRANK PRESS:

Q: How does the single crank mechanism enhance the performance of the 1685 KOMATSU C Frame Press?

A: The single crank mechanism provides efficient transfer of force, resulting in precise and consistent forming operations. This design also simplifies maintenance and contributes to the presss reliability during continuous production.

Q: What options are available for adjusting the stroke length and table size on this press?

A: Stroke length can be adjusted according to model specifications, offering flexibility for various applications. Table size is determined by the press capacity and can be further customized to accommodate specific dies and sheet sizes.

Q: When should I choose manual versus motorized ram adjustment?

A: Manual ram adjustment suits operations with frequent setup changes or where cost efficiency is vital. Motorized adjustment offers faster, more precise positioning, making it ideal for automated production lines or operations requiring consistent ram settings.

Q: Where can the 1685 KOMATSU C Frame Press be installed, considering its dimensions and power requirements?

A: The press comes in standard models with varying dimensions based on capacity, making it suitable for small to large manufacturing facilities. Its adaptable voltage settings (220V/380V/415V) allow installation in diverse geographic regions and factory setups.

Q: What is the production rate of this press and what factors influence it?

A: Production rates are model-dependent and can reach up to 60 strokes per minute. Factors such as press capacity, material type, operation mode, and accessory integration (like feeders and lubricators) can affect actual output speed.

Q: How does the integrated safety features benefit operators during use?

A: Mechanical interlocks and overload protection help prevent operational errors and equipment damage, safeguarding operators against accidents and enhancing overall workplace safety.

Q: Is the press suitable for varied sheet metal applications, and what are its key accessories?

A: Yes, it is designed for punching, stamping, forming, embossing, and bending sheet metal. Key accessories available include die cushion, automatic feeder, lubricator, pneumatic clutch, all contributing to enhanced productivity and versatility.
