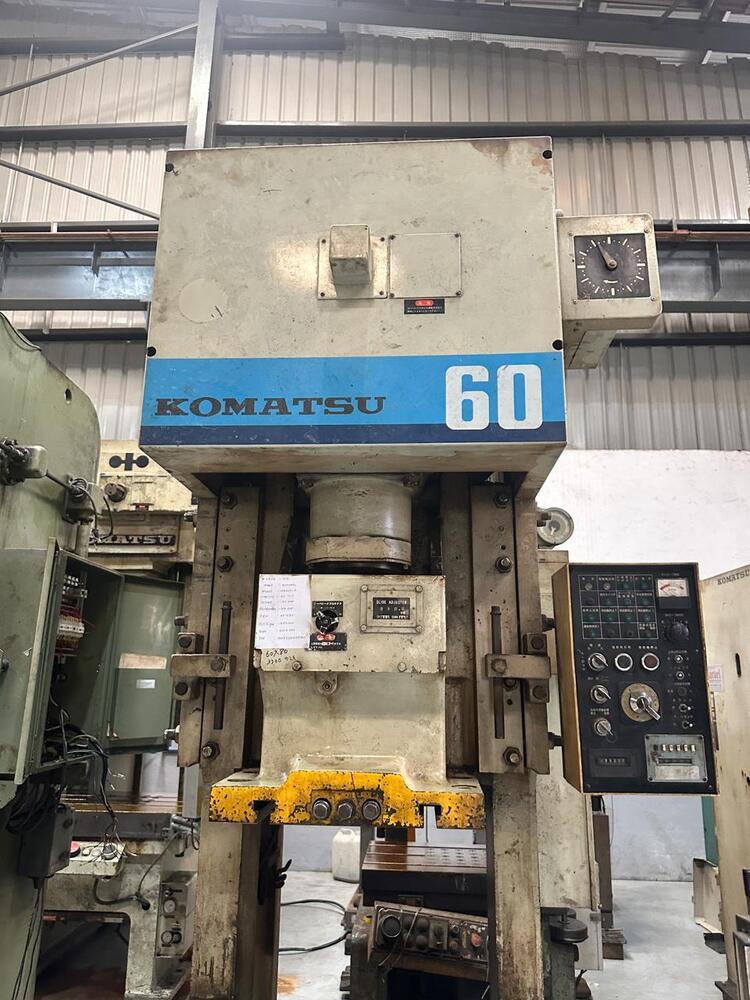

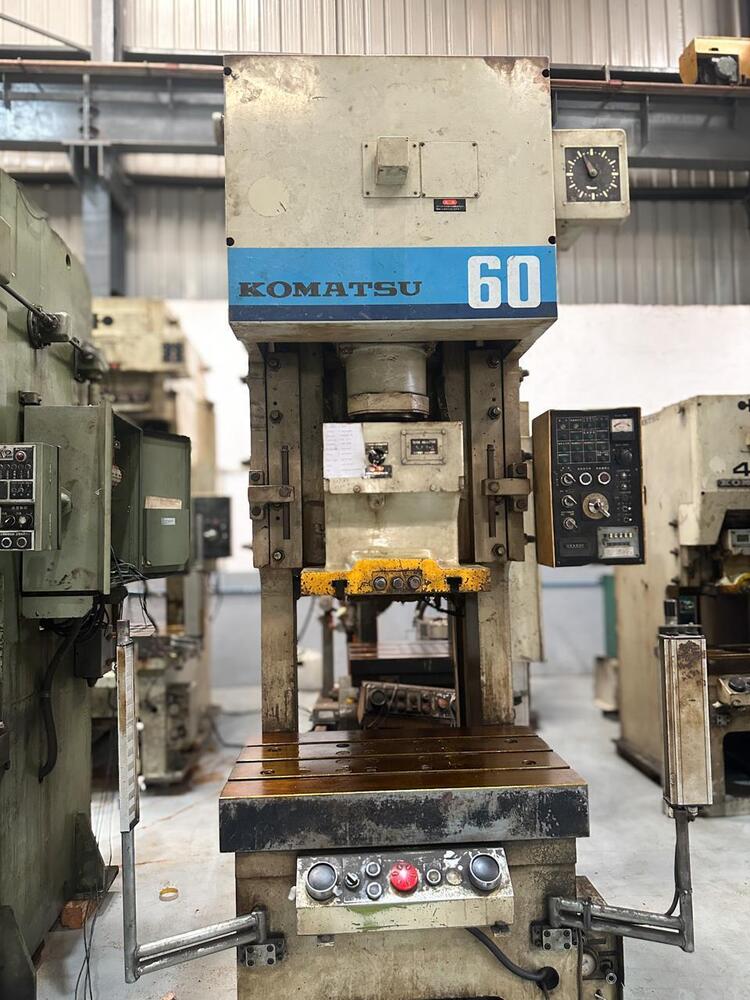

1691 KOMATSU C FRAME SINGLE CRANK PRESS

Price 800000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

1691 KOMATSU C FRAME SINGLE CRANK PRESS Specification

Material
High-grade steel

Power
45 Ton

Voltage
380 V

Product Type
C FRAME SINGLE CRANK POWER PRESS

Dimension (L*W*H)
1800 x 1100 x 2700 mm

Application
Metal forming, punching, stamping and drawing operations

Accessories
Standard Die Cushion, Foot Switch, Control Panel

Capacity
30 Tons

Automation Grade
Semi Automatic

Shut Height
350 mm

Frame Type
C Frame

Slide Adjustment
80 mm

Crank Type
Single Crank

Bolster Size
900 x 650 mm

Model
1691

Stroke Length
150 mm

Motor Power
5.5 kW

1691 KOMATSU C FRAME SINGLE CRANK PRESS Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Main Domestic Market
All India

1691 KOMATSU C FRAME SINGLE CRANK PRESS About

SKU # 1691

Brief Specifications/ Details

Cap : 60Tons
Stroke : 150mm
Die Height : 350mm
Adjustment : 70mm
SPM : 4085
Slide : 500x 400mm
Bolster : 900x 550mm

Accessories :With Die Cushion

Precision Engineering for Versatile Metal Forming

Engineered with a single crank and robust C-frame, the 1691 KOMATSU press excels in precise metal forming tasks such as punching and drawing. Its high-grade steel construction boosts durability and minimizes vibration, ensuring reliability across intensive operations.

Intuitive Operation with Safety and Efficiency

This press comes with a semi-automatic control system, foot switch, and an integrated control panel, streamlining workflow and reducing manual effort. The design allows operators to handle materials efficiently while maintaining stringent safety standards.

Flexible Setup and Maintenance

The adjustable slide (up to 80 mm) and standard die cushion support efficient die changes, while its spacious bolster accommodates various workpieces. Installation and maintenance are straightforward, thanks to accessible components and clear operational guidance.

FAQs of 1691 KOMATSU C FRAME SINGLE CRANK PRESS:

Q: How is the 1691 KOMATSU C Frame Single Crank Press typically used in metalworking?

A: This press is ideal for tasks such as punching, metal forming, stamping, and drawing. Its sturdy C-frame and single crank design make it suitable for small to medium-sized production in workshops and manufacturing plants.

Q: What benefits does a C-frame design offer compared to other frame types?

A: The C-frame structure provides excellent accessibility from three sides, making setup and maintenance easier. It also allows quick loading and unloading of materials, thereby improving workflow efficiency in metalworking operations.

Q: When should I use the slide adjustment and what is its range?

A: The slide adjustment, which ranges up to 80 mm, enables precise control over tooling height. You should use it when switching dies or processing workpieces of varying thickness to ensure accurate stamping results.

Q: Where is the 1691 KOMATSU press manufactured, and what ensures its build quality?

A: The press is manufactured in Japan, known for its high standards in machinery production. It is constructed from premium high-grade steel, contributing to long-term durability and reliability in demanding environments.

Q: What is the process for installing the press in a new workshop?

A: Install the press on a firm, level surface with sufficient space (1800 x 1100 x 2700 mm for dimensions). Connect to a 380 V power supply and assemble the provided accessories, such as the die cushion, foot switch, and control panel. Detailed setup instructions are typically included with the unit.

Q: How does the semi-automatic function benefit operators?

A: The semi-automatic operation streamlines repetitive processes, reducing manual labor and improving productivity. Integrated controls and safety mechanisms, like the foot switch, also help minimize the risk of operator error.
